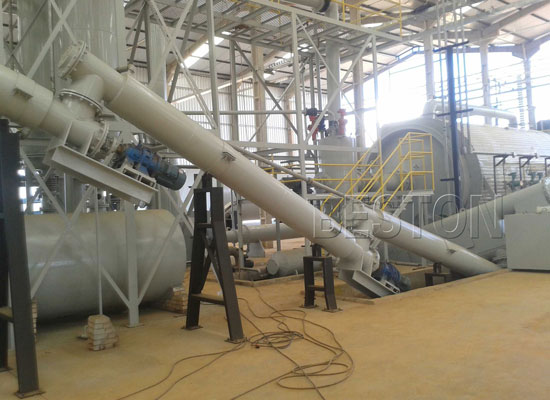

How to convert waste tyre to useful resources? Now, it is no longer a problem. The tyre to oil machine manufactured by Beston can turn waste tyre to oil, carbon black and steel wire. The tyre oil machine includes six models, BLJ-6, BLJ-10, BLL-16, BLL-30, BLL-40 and BLL-50. Their operating systems can be batch, semi-continuous and fully-continuous. BLJ-06 and BLJ-10 are batch operating systems; BLL-16 is semi-continuous system; BLL-30, BLL-40 and BLL-50 are fully continuous systems. The following are some differences between the batch and semi/fully continuous systems:
Firstly, the continuous pyrolysis system need a tire crusher to cut the tires into small pieces (30-50mm). While the batch pyrolysis system doesn’t need pre-treatment devices and the tires can be put into the reactor directly. Secondly, for the continuous pyrolysis system, its feeding of tire and discharging of slag are both automatic. While for the batch pyrolysis system, its feeding process and discharging of steel wire are both manual. Thirdly, the fully continuous pyrolysis system can work continuously for 24 hours per day without a stop. The semi-continuous plant can work 3-4 shift per day and it only needs one hour to cool down the reactor before the secone batch. While the batch plant can only work one shift per day, and need to 5-6 hours to cool the reactor.
No matter which set of machine you choose, you will get high quality guarantee. Our each set of equipment is certified by CE, ISO, SGS and has the following advantages:
1. Safe.
1) Totally sealed pyrolysis process, so the gas will not leak and danger can be avoided.
2) It is equipped with mature safety devices (alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system, fire fighting devices), which can guarantee 100% safety in the production process.
2. Energy-saving.
1) The latest heating method which can not only save fuel but also prolong service life of the reactor.
2) The exhaust gas will be recycled by the extra gas recycling system, which saves energy and reduces pollution.
3. Environmental protection.
1) It can discharge slag in a totally sealed environment and the working environment can be greatly improved.
2) Advanced dedusting system (water spray, ceramic ring filter, washing chamber) to guarantee the released gas is pollution-free.
| Item | Details | |||||
| Model | BLJ-6 | BLJ-10 | BLL-16 | BLL-30 | BLL-40 | BLL-50 |
| Daily capacity | 6T | 10T | 20T | 30T | 40T | 50T |
| Working method | Batch | Semi-continuous | Fully continuous | |||
| Raw materials | Waste tire, plastic, rubber, oil sludge, medical waste | |||||
| Reactor size | D2.2*L 5.1m | D2.8*L6.2 m | D2.8 *L7.1 m | L12.5*W2.2*H2.5m | ||
| Pattern | Horizontal & rotary | Not rotary type | ||||
| Heating materials | Charcoal, wood, fuel oil, natural gas, LPG, etc. | |||||
| Total power | 24 kw/h | 30 kw/h | 54 kw/h | 53.6kw/h | 62kw/h | 84kw/h |
| Floor area (L*W*H) | 20*10*10 m | 25*15*10 m | 25*15*10 m | 20*15*10m | 33*15*10m | 33*15*10m |
| Operating pressure | Normal pressure | Constant pressure | ||||
| Cooling method | Water cooling | |||||
| Service life | 5-8 years | |||||
