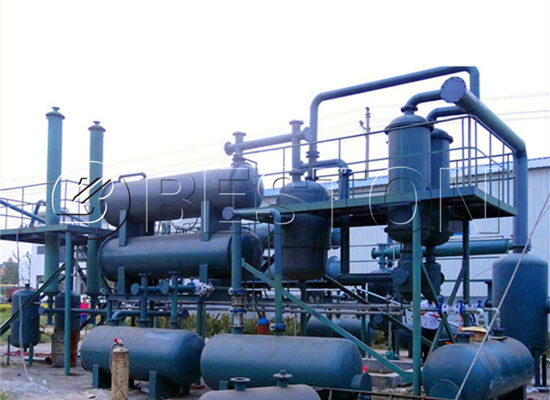

The crude oil distillation plant is aimed at refining crude oil into diesel oil or gasoline, which can be used in low speed engine and generators.The distillation of crude oil can be operated in normal pressure condition and vacuum pressure condition.
In the crude oil distillation process, the oil will first be pumped to the reactor and then it will start to boil and evaporate when it is heated to the working temperature. Oil gas from reactor has already been purified by distillation tower before it gets into condensers and liquefied into light fuel oil. This kind of oil will be piped into deep purifying systems with acidity and alkaline cleaning devices as well as pressure filtering system. When the whole process of crude oil distillation is over, we will get qualified diesel oil or gasoline, the performance indexes (density, viscosity, acid value) of which can meet new oil’s data.
The main features and advantages of the crude oil refinery plant:
1. Automatic feeding and discharging systems, which makes it easy to operate and can greatly save manpower.
2. Totally sealed distillation reactor and distillation tower to avoid gas leakage and ensure no-pollution.
3. Latest hot air heating system, which can prolong the service life of the reactor for extra 1-2 years.
4. New-type tubular condensers, larger cooling area, better cooling effect and higher oil yield.
5.Equipped with safety valves, automatic alarming system, anti-explosion valve, which will guarantee 100% safety in the working process.
6. Adopting three-layer dedusting system to cleanse the exhaust gas, the released gas will reach European pollution control standards.
| Model | BZJ-06 | BZJ-10 |
| Capacity | 6T/D | 10T/D |
| Oil Yield | 5.1T/D | 8.5T/D |
| Working Method | Batch | |
| Raw Materials | Crude oil, waste oil, fuel oil, used engine oil | |
| Heating Materials | Oil, LPG, natural gas, wood, coal, etc. | |
| Power | 20KW | 36KW |
| Structural Form | Vertical | |
| Cooling Method | Water cooling | |
| Operating Pressure | Normal and Vacuum | |
| Service Life | 5-8 years | |
Our After-sales Service:
1. Design the installation drawings according to your site.
2. 1 year warranty, engineers available to service at any time.
3. Periodical call visit, to make sure there is no problems of the equipment.
4. Design specific maintenance program according to different situation of your plant.
5. For each set of oil distillation plant, one technician will be sent to guide your installation, test the machine and train your workers. Besides, we will provide one month’s service for free.
